EIZO 19IN DURAVISION FDS1921T 1280 X 1024 DVI1 DP1 VGA1 1000:1 5 MS MNTR

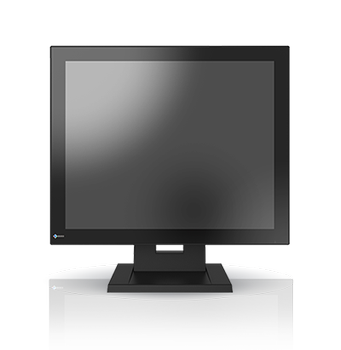

EIZO FDS1921T 19.0" Touch Panel Color LCD Monitor

• The fully flat design enables seamless touch operation. The smooth surface also allows for easy cleaning.
• The monitor's antiglare screen minimizes reflections from external light to maintain high visibility. It is also resistant to fingerprints to ensure clear images at all times.
• The DuraVision FDS1921T is equipped with a long-lasting LED backlight with a wide dimming range of 0.5 cd/m2 to 380 cd/m2 to ensure maximum visibility when viewed under various ambient lighting conditions.
• The touch screen has a non-scratch surface made of reinforced glass with a hardness of 7H (Mohs scale), making it durable for long-term use in public access areas. The monitor can withstand temperatures ranging from 0 - 40°C.
• The DuraVision FDS1921T uses surface acoustic wave technology (SAW) which exhibits higher light transmittance compared with resistive touch screens for high visibility. It supports 2-point multi-touch operation and accepts touch input from your finger with or without gloves, as well as from styluses. This makes it easy to use in factories, clean rooms, and public access areas.
• The monitor comes standard with a desktop stand and also complies with the VESA standard for flexible installation.
• The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs for supporting digital and analog signals. The terminals are positioned on the side of the monitor for easy access.
• The monitor is built for 24-hour use and is backed by a 3-year manufacturer's warranty for long-term reliability.

• Model Variations
• FDS1921T-GY: with Tilt stand, gray
• FDS1921T-BK: with Tilt stand, black
• FDS1921T-FGY: without stand, gray
• Panel
• Type TN
• Backlight LED
• Size 19.0" (48.2 cm)
• Native Resolution 1280 x 1024 (5:4 aspect ratio)
• Viewable Image Size (H x V) 376.3 x 301.1 mm
• Pixel Pitch 0.294 x 0.294 mm
• Display Colors 16.77 million
• Viewing Angles (H / V, typical) 170°, 160°
• Brightness (typical) 380 cd/m2
• Contrast Ratio (typical) 1000:1
• Response Time (typical) 5 ms (black-white-black)
• Touch Panel
• Type Surface Acoustic Wave
• Touch Points 2
• Surface Treatment Anti-Glare coating, Anti-Fingerprint coating
• Communication Protocol USB
• Surface Hardness 7 Mohs
• Compatible OS Windows 10 / 8.1 (64-bit, 32-bit)
• Video Signals
• Input Terminals DisplayPort (HDCP1.3), DVI-D (HDCP1.4), D-Sub mini 15 pin
• Digital Scanning Frequency (H / V) 31 - 64 kHz, 59 - 61 Hz
• Analog Scanning Frequency (H / V) 31 - 81 kHz, 55 - 76 Hz
• Sync Formats Separate
• USB
• Upstream USB 2.0: Type-B
• Audio
• Speakers 1.0 W + 1.0 W
• Input Terminals Stereo mini jack
• Power
• Power Requirements AC 100 - 120 V/ AC 200 - 240 V, 50 / 60 Hz
• Typical Power Consumption 9 W
• Maximum Power Consumption 30 W
• Power Save Mode 2.5 W or less
• Features & Functions
• Preset Modes User1, User2, sRGB
• OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
• Communication Protocol VESA DDC2B
• Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, DDC/CI, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, Power Indicator, Reset
• Physical Specifications
• Dimensions (Landscape, W x H x D) 434 x 438 x 157 mm
• Dimensions (Without Stand, W x H x D) 434 x 358 x 55 mm
• Net Weight 8.2 kg / 18.1 lbs
• Net Weight (Without Stand) 5.8 kg / 12.8 lbs
• Tilt 30° Up, 0° Down
• Hole Spacing (VESA Standard) 100 x 100 mm, M4, screw depth 3.0 - 9.5 mm
• Environmental Requirements
• Operating Temperature 0 - 40°C
• Operating Humidity (R.H., non condensing) 20 - 90%
• Certifications & Standards (Please contact EIZO for the latest information.) CB (Medical), CB, CE, UKCA, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RoHS, WEEE
• Supplied Accessories (May vary by country. Please contact EIZO for details.)
• Signal Cables DVI-D (2 m), D-Sub mini 15 pin (1.8 m)
• Others AC Power cord (2m), USB Type-A - USB Type-B cable (1.8m), Audio cable (2.1m), Setup manual, CD-ROM, VESA mounting screw x 4 (Freemount Only)
• Warranty 3 Years (24-hour use)
