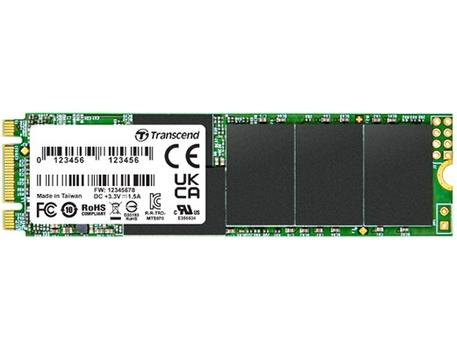

TRANSCEND SSD 128GB M.2 SATA B+M Key ext temp TRAY

MTS970T 128GB

• Compliant with RoHS 2.0 standards
• Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
• DDR3 DRAM Cache embedded
• Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
• Key components fortified by default with Corner Bond technology
• 30µ" PCB gold finger
• Anti-sulfur technology implemented to prevent sulfurization in the environment
• Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
• Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
• Supports Transcend Scope Pro software

• Dimensions 80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14")
• Weight 9 g (0.32 oz)
• M.2 Type 2280-D2-B-M (Double-sided)
• Form Factor M.2 2280

• Bus Interface SATA III 6Gb/s

• Capacity 128 GB
• Flash Type 112-layer 3D NAND flash

• Operating Voltage 3.3V±5%
• Operating Temperature Extended Temp.-20°C (-4°F) ~ 75°C (167°F), Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
• Storage Temperature -55°C (-67°F) ~ 85°C (185°F)
• Humidity 5% ~ 95%
• Shock 1500 G, 0.5 ms, 3 axis
• Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)

• Power Consumption (Operation) 4.1 watt(s)
• Power Consumption (IDLE) 1.2 watt(s)

• Sequential Read/Write (CrystalDiskMark) Read: Up to 560 MB/s, Write: Up to 520 MB/s
• 4K Random Read/Write (IOmeter) Read: Up to 90,000 IOPS, Write: Up to 80,000 IOPS
• Mean Time Between Failures (MTBF) 3,000,000 hour(s)
• Terabytes Written (TBW) Up to 9680 TBW
• Drive Writes Per Day (DWPD) 2.21 (3 yrs)

• Certificate CE/UKCA/FCC/BSMI
• Warranty Three-year Limited Warranty
