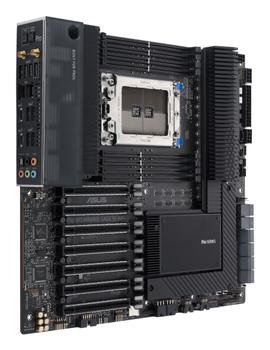

ASUS Wrx80E-Sage Se Wifi Amd Wrx80

Pro WS WRX80E-SAGE SE WIFI

• AMD sWRX8 socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors
• Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb Ethernet
• ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
• Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
• Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security

• AMD® Ryzen™ Threadripper™ Pro Processors

• AMD WRX80 Chipset

• Memory Channels:8DDR4 (Eight Channel)
• Max Memory Size:2048GB
• 8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and NonECC, buffered and Unbuffered, UDIMM, RDIMM and 3DS RDIMM Memory
• 8 Channel Memory Architecture

• AMD Ryzen™ Threadripper™ PRO Series Processors 7 x PCIe 4.0/3.0 x16 slot(s)

• Supports NVIDIA 4Way/3Way/2Way SLI® Technology

• Supports 3 x M.2 slots and 8 x SATA 6Gb/s ports
• AMD Ryzen™ Threadripper™ PRO Series Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices
• AMD WRX80 Chipset
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices
  • 4 x SATA 6Gb/s ports
• ASMedia ASM1061 Controller
  • 4 x SATA 6Gb/s ports
  • Supports NVMe RAID configurations via M.2 storages

• 1 x Intel® X550AT2 dual 10Gb Ethernet

• Intel® WiFi 6 AX200
• 2x2 WiFi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MUMIMO
• Supports up to 2.4Gbps max data rate
• Supports 2.4/5GHz DualBand
• Supports channel bandwidth: HT20/HT40/HT80/HT160
• Supports PCIe interface
• Bluetooth v5.1

• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB TypeC®)
• 9 x USB 3.2 Gen 2 port(s) (8 x TypeA + 1 x USB TypeC®)
• Front USB:Total 7 ports
  • 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB TypeC®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

• Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
  • Impedance sense for front and rear headphone outputs
  • Supports: Jackdetection, Multistreaming, Front Panel Jackretasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • Supports up to 32Bit/384 kHz playback
• Audio Features
  • Audio Shielding
  • Power preregulator reduces power input noise to ensure consistent performance
  • Rear optical S/PDIF out port
  • Premium Japanese audio capacitors
  • Dedicated audio PCB layers
  • Unique depop circuit

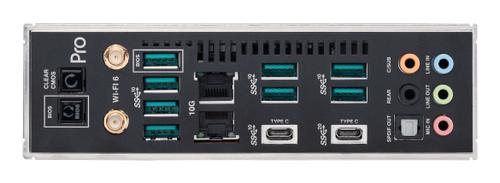

• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB TypeC®)
• 9 x USB 3.2 Gen 2 port(s) (8 x TypeA+ 1 x USB TypeC®)
• 1 x ASUS WiFi Module
• 2 x Intel® X550AT2 dual 10Gb Ethernet ports
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

• Fan and Cooling related
  • 1 x 4pin CPU Fan header(s)
  • 1 x 4pin CPU OPT Fan header(s)
  • 6 x 4pin Chassis Fan header(s)
  • 1 x VRM heatsink Fan header
  • 1 x Chipset Fan header
• Power related
  • 1 x 24pin Main Power connector
  • 2 x 8pin +12V Power connector
  • 2 x 6pin PCIe Graphics Card connector
  • 1 x 8pin PCIe Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 8 x SATA 6Gb/s ports
  • 2 x U.2 slots
• USB
  • 1 x USB 3.2 Gen 2 connector (support(s) USB TypeC®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• BMC Related
  • 1 x BMC switch
  • 1 x IPMI switch
  • 1 x Messange LED header
  • 1 x Micro SD card socket
  • 2 x LAN LED header(s)
  • 1 x Location LED header
  • 1 x Location button header
  • 1 x PSU_SMB header
  • 1 x SMART_PSU switch
  • 1 x VGA switch
  • 1 x VGA header
  • 1 x VPP_I2C header
• Miscellaneous
  • 1 x COM Port header
  • 1 x FlexKey button
  • 1 x Front Panel Audio header (AAFP)
  • 1 x SPI TPM header (141pin)
  • 1 x Start button
  • 1 x 203 pin System Panel header with Chassis intrude function
  • 1 x RTC Battery header
  • 1 x Thermal Sensor header

• ASUS QDesign
  • QCode
  • QConnector
  • QDIMM
  • QLED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • QSlot
• ASUS Thermal Solution M.2 heatsink
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Clear CMOS button
  • ProCool II
  • Premounted I/O shield
  • SafeSlot
• Bespoke Motherboard Design & Business Focused Features
  • Event Log in ASMB9iKVM
  • 24/7 Reliability
  • Overcurrent Protection

• ASUS Exclusive Software
• Armoury Crate
• ASUS CPUZ
• AI Charger
• ASUS Turbo LAN
• DAEMON Tools
• DTS:X® Ultra
• Norton Antivirus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables
  • 6 x SATA 6Gb/s cables
  • 1 x VGA cable
• Miscellaneous
  • 1 x ASUS 2x2 DualBand WiFi moving antennas
  • 1 x Hyper M.2 X16 Gen 4 Card
  • 3 x M.2 Rubber Package(s)
  • 3 x M.2 SSD screw package(s)
  • 1 x Qconnector
• Installation Media 1 x Support DVD
• Documentation 1 x User manual

• 30.98cm*33.02cm
