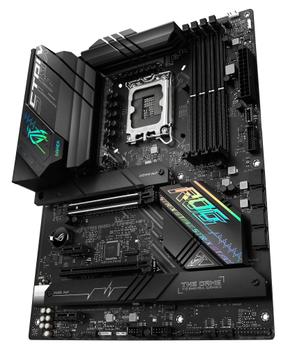

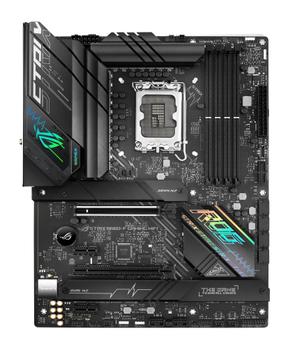

ASUS Rog Strix B660-F Gaming Wifi

ROG STRIX B660-F GAMING WIFI

• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Optimal Power Solution: 16+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates
• High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
• Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 RGB headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86

• Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 10 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Intel® B660 Chipset

• 4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Unbuffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

• 1 x DisplayPort
• 1 x HDMI® port

• Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot (supports x16 mode)
• Intel® B660 Chipset
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 2 x PCIe 3.0 x1 slots

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• Intel® B660 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)
• 4 x SATA 6Gb/s ports

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

• WiFi 6
• 2x2 WiFi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2

• Rear USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB TypeC®)
  • 1 x USB 3.2 Gen 2 ports (1 x TypeA)
  • 5 x USB 3.2 Gen 1 ports (4 x TypeA, 1 x USB TypeC®)
  • 2 x USB 2.0 ports (2 x TypeA)
• Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB TypeC®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • Impedance sense for front and rear headphone outputs
  • Supports: Jackdetection, Multistreaming, Front Panel Jackretasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • Supports up to 32Bit/384 kHz playback
• Audio Features
  • SupremeFX Shielding Technology
  • Savitech SV3H712 AMP
  • Premium audio capacitors
  • Audio cover

• 1 x USB 3.2 Gen 2x2 port (1 x USB TypeC®)
• 1 x USB 3.2 Gen 2 ports (1 x TypeA)
• 5 x USB 3.2 Gen 1 ports (4 x TypeA, 1 x USB TypeC®)
• 2 x USB 2.0 ports (2 x TypeA)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x WiFi Module
• 1 x Intel® I225V 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

• Fan and Cooling related
  • 1 x 4pin CPU Fan header
  • 1 x 4pin CPU OPT Fan header
  • 1 x 4pin AIO Pump header
  • 4 x 4pin Chassis Fan headers
• Power related
  • 1 x 24pin Main Power connector
  • 1 x 8pin +12V Power connector
  • 1 x 4pin +12V Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 2 connector (supports USB TypeC®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x S/PDIF Out header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x SPI TPM header (141pin)
  • 1 x 203 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ header

• Extreme Engine Digi+ 5K Black Metallic Capacitors
• ASUS QDesign
  • M.2 QLatch
  • QDIMM
  • QLED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • QSlot
• ASUS Thermal Solution
  • M.2 heatsink backplate
  • M.2 heatsink
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • CPU Socket lever protector
  • Clear CMOS button
  • ProCool
  • Premounted I/O shield
  • SafeSlot
  • SafeDIMM
• AURA Sync
  • AURA RGB header
  • Addressable Gen 2 RGB headers

• ROG Exclusive Software
  • GameFirst VI
  • ROG CPUZ
  • Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  • Sonic Radar III
  • DTS® Sound Unbound
  • Antivirus software
• ASUS Exclusive Software
• Armoury Crate
  • AIDA64 Extreme (60 days free trial)
  • AURA Creator
  • AURA Sync
  • Fan Xpert 4
  • TwoWay AI Noise Cancelation
• AI Suite 3 Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• MyAsus
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
• MemTest86

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables 4 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x ASUS WiFi moving antennas
  • 1 x Cable ties pack
  • 1 x M.2 Rubber Package
  • 1 x M.2 QLatch package
  • 1 x M.2 QLatch package for M.2 backplate
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
• Installation Media 1 x Support DVD
• Documentation 1 x User manual

• Windows® 10 64bit, Windows® 11 64bit

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
