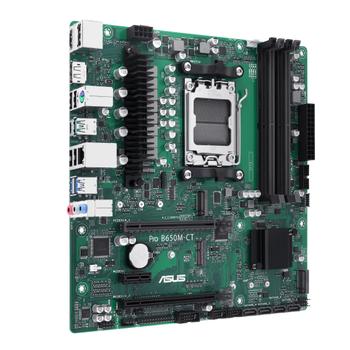

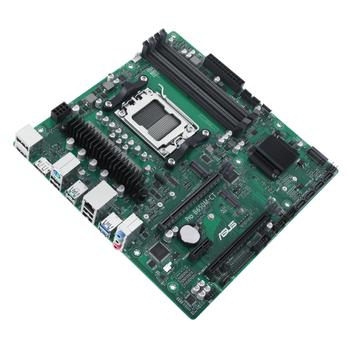

ASUS Pro B650M-CT-CSM AM5 mATX MB 4xDDR5 4xSATA 2xM.2

Pro B650M-CT-CSM

• AM5 Socket for AMD Ryzen™ Desktop Processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: ASUS Boot Defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast connectivity: M.2 PCIe 5.0, DDR5, USB 3.2 Gen 2 ports and front USB 3.2 Gen 1 Type-C®

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

• AMD B650 Chipset

• 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II

• 2 x DisplayPort
• 1 x HDMI™ port

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x16 mode)
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  • 1 x PCIe 4.0 x16 slot (supports x4/x2 mode)
• AMD B650 Chipset
  • 1 x PCIe 4.0 x1 slot

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD B650 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports

• 1 x Realtek 1Gb Ethernet
• ASUS LANGuard

• M.2 slot only (Key E, PCIe)

• Rear USB (Total 8 ports)
  • 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
  • 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 2 x DisplayPort
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
• Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  • 1 x Clear CMOS header
  • 1 x Chassis Intrude header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x COM debug header
  • 1 x LPT header
  • 1 x Mono-out header (with Amp IC)
  • 1 x M.2 slot (Key E)
  • 1 x SMBUS header
  • 1 x Speaker header
  • 1 x 10-1 pin System Panel header

• ASUS Q-Design
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
• ASUS Thermal Solution
  • VRM heatsink design
• ASUS EZ DIY
  • Box Headers
• Bespoke Motherboard Design & Business Focused Features
  • ASUS Boot Defender
  • ASUS Self Recovering BIOS
  • ASUS Event Log
  • ASUS Commercial BIOS kit
  • Anti-Moisture Coating
  • 24/7 Reliability
  • Overcurrent Protection
• TPM2.0 IC Onboard

• ASUS Exclusive Software
• IT Management software supported
• ASUS Control Center Express (ACCE)

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x I/O Shield
  • 1 x Screw package for M.2 SSD
  • 1 x Screw package for M.2 Key E
• Documentation
  • 1 x ACC Express Activation Key Card
  • 1 x User guide

• Windows® 11, Windows® 10 64-bit

• mATX Form Factor
• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
