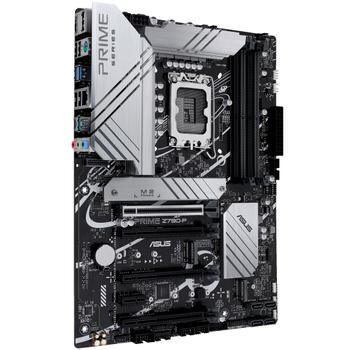

ASUS PRIME Z790-P ATX -emolevy

PRIME Z790-P

• 14(50A)+1(60A)+1 power stages with enlarged VRM heatsinks
• Gen 5 Slot for Graphics Card
• AEMP II for Ultimate DDR5 Performance
• USB 3.2 Gen 2x2 Type-C® & Thunderbolt (USB4®) Support
• 2.5 Gb Ethernet
• Intelligent Control
• Al Cooling II
• Customization

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Intel® Z790 Chipset

• 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

• 1 x DisplayPort
• 1 x HDMI® port

• Intel® Core™ Processors (14th & 13th & 12th Gen)
  • 1 x PCIe 5.0 x16 slot
• Intel® Z790 Chipset
  • 3 x PCIe 4.0 x16 slots (support x4 mode)
  • 1 x PCIe 3.0 x1 slot

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® Core™ Processors (14th & 13th & 12th Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• Intel® Z790 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports

• Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Vertical M.2 slot (Key E)
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 2 x Aura RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-5pin System Panel header
  • 1 x Thunderbolt™ (USB4®) Header

• ASUS 5X PROTECTION III
  • DIGI+ VRM (Digital power design with DrMOS)
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • Q-DIMM
  • Q-Slot
  • Q-LED Core
• ASUS Thermal Solution
  • Flexible M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • ProCool
• Aura Sync
  • Aura RGB headers
  • Addressable Gen 2 headers

• ASUS Exclusive Software
  • Armoury Crate
  • Aura Sync
  • Fan Xpert 4 (with AI Cooling II)
  • Power Saving
  • AI Suite 3
  • -TurboV EVO
  • PC Cleaner
  • DIGI+ VRM
  • ASUS CPU-Z
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

• 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 2 x Screw packages for M.2 SSD
• Documentation
  • 1 x User guide

• Windows® 11, Windows® 10 64-bit

• ATX Form Factor
• 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
