ASUS Intel Z690 Lga 1700 Atx

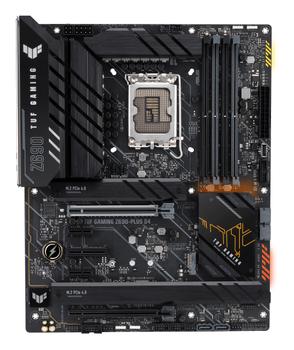

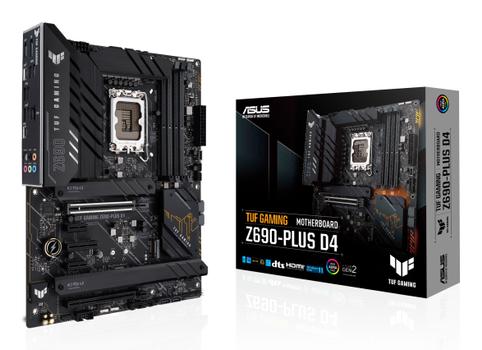

TUF GAMING Z690-PLUS D4

• Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
• Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
• Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
• Made for online gaming: Intel 2.5 Gb Ethernet and TUF LANGuard
• Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
• Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support

• CPU
• Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
• Z690
• Memory
• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
• /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphics
• 1 x DisplayPort**
• 1 x HDMI® port***
• * Graphics specifications may vary between CPU types.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4
• ***Supports 4K@60Hz as specified in HDMI 2.1.
• **** VGA resolution support depends on processors' or graphic cards' resolution.
• Expansion Slots
• Intel® 12th Gen Processors*
• 1 x PCIe 5.0 x16 slot
• Intel® Z690 Chipset**
• 1 x PCIe 3.0 x16 slot (supports x4 mode)
• 1 x PCIe 3.0 x4 slot
• 2 x PCIe 3.0 x1 slots
• * Please check PCIe bifurcation table in support site.
• ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
• Storage
• Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® 12th Gen Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110
• - Intel® 12th Gen processors support PCIe 4.0 x4 mode
• Intel® Z690 Chipset**
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
• ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
• Ethernet
• 1 x Intel® 2.5Gb Ethernet
• TUF LANGuard
• USB
• Rear USB:Total 8 ports
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
• Front USB:Total 7 ports
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Dedicated audio PCB layers
• - Audio Cover
• Back Panel I/O Ports
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• Internal I/O Connectors
• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt™ header
• Special Features
• ASUS TUF PROTECTION
• - DIGI+ VRM (- Digital power design with DrMOS)
• - Enhanced DRAM Overcurrent Protection
• - ESD Guards
• - TUF LANGuard
• - Overvoltage Protection
• - Safeslot
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - CPU Socket lever protector
• - ProCool
• - Pre-mounted I/O shield
• - SafeDIMM
• AURA Sync
• - AURA RGB header
• - Addressable Gen 2 headers
• Software Features
• ASUS Exclusive Software
• Armoury Crate
• - AURA Creator
• - AURA Sync
• - Fan Xpert 4
• - Two-Way AI Noise Cancelation
• AI Suite 3
• - Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• TUF GAMING CPU-Z
• DTS Audio Processing
• MyAsus
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• BIOS
• 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability
• WOL by PME, PXE
• Accessories
• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 2 x M.2 Rubber Packages
• 1 x M.2 SSD screw package
• 1 x TUF GAMING sticker
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x TUF Certification card
• 1 x User guide
• Operating System
• Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
• ATX
• 30.5cm x 24.4cm
